Model: FLRV
LAB Category

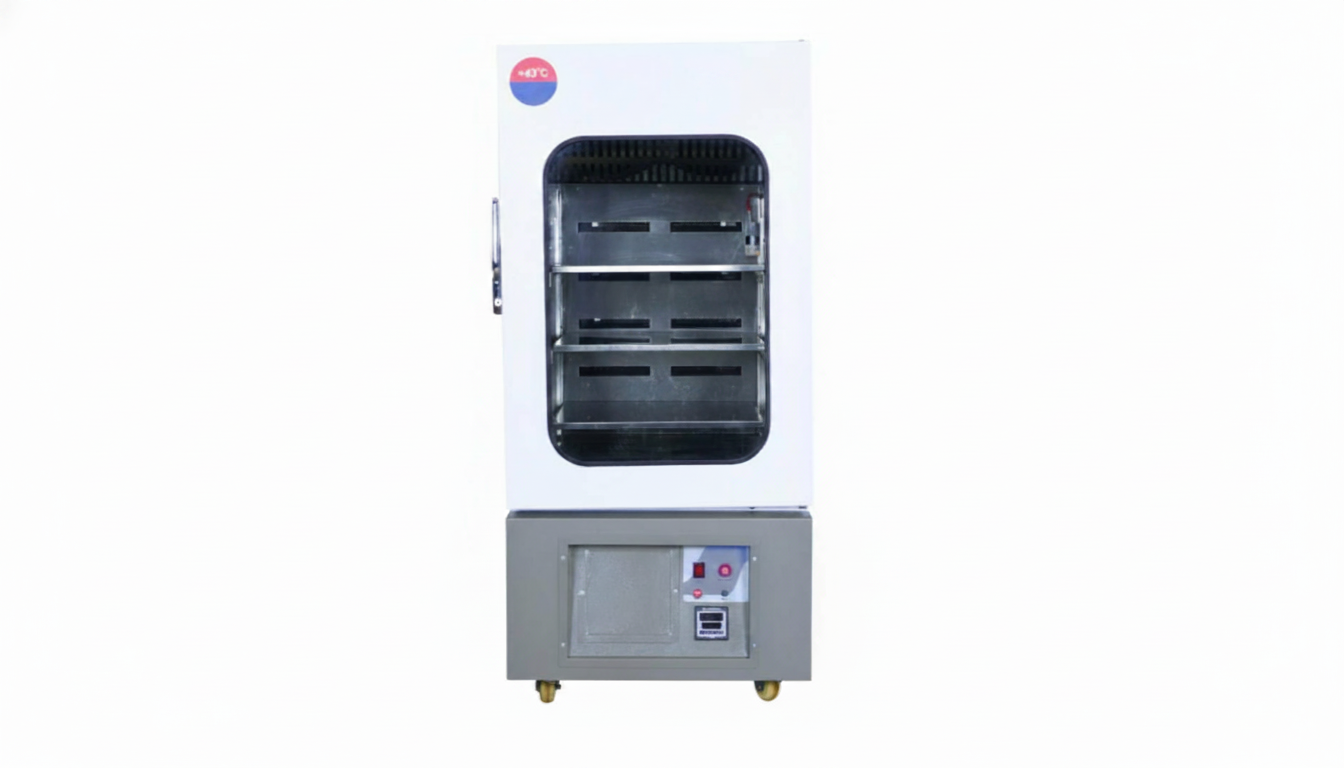

Laboratory Refrigerator (Vertical)
Laboratory Refrigerators provide reliable, uniform temperature control for safe storage of pharmaceuticals, vaccines, medicines, and other sensitive products — trusted by research labs, hospitals, and pharmaceutical industries.
Ergonomic & Secure Design: Key-locked glass door ensures visibility while preventing unauthorized access.
Tropical Climate Ready: Operates from -10°C to +45°C, maintaining stability in diverse environments.
Enhanced Safety & Security: Programmable alarms and password-protected panels prevent tampering.
Premium Build Quality: 99.97% pure copper tubing ensures exceptional durability and cooling efficiency.
Forced-Air Cooling System: Finned evaporator ensures fast temperature recovery and frost-free performance.
Convenient Interior Lighting: Built-in lights provide clear visibility for easy inventory management.
Technical Specifications
| Specifications | Values |
|---|---|
| Model Number | FLRV |
| Cabinet Type | Vertical / Upright |
| Outer Body | Mild steel /GI powder coated steel (18swg) |
| Inner Chamber | Stainless Steel 304 for Durable unbreakable construct |
| Insulation | PUFF Insulation-CFC free (Cabinet: 75mm | Door: 50mm) |
| Castors Wheels | 4 castor wheels (2 Lockable and 2 un-lockable) |
| Ground Clearance | 100mm |
| Door | Glass Door with Handel and Key Lock |
| Inner Door | Separate acrylic sheet inner door to prevent cold air loss |
| Compressor | Hermetically sealed compressor |
| Refrigerants | CFC-HCFC-Free non flammable R134a |
| Condensing | Force Air Circulation |
| Temperature Range | +2°C to +8°C (Accuracy +0.1°C) |
| Temperature Sensor | PT100 |
| Environmental Conditions | Maximum -10°C to +45°C with Humidity 5% to 95% |
| Pull Down Time | 8 hrs. when refrigerator is fully loaded. |
| Holdover Time | 1.5 hrs. |
| Control System | Programmable microprocessor with membrane keypad & Password Protected |
| Display | TFT Touch Screen Digital Temperature Display |
| Alarms | Audible & Visual (Over-under temp, Power failure, Battery low, Door open) |
| Battery Backup | 12 hrs. for Display, Alarms, and Recording system |
| Monitoring System | Data logger and Inkless temperature chart recorder (Optional) |
| Noise Level | <55 dBA |
| Power Protection | MCB fitted in input Power Line |
| Power Supply | 220-240V AC, 50Hz single phase AC power supply |
| Accessories | Servo Voltage Stabilizer, SS Shelves, Stem Alcohol Thermometer |
* Specifications, features, and design are subject to change without prior notice for product improvement.
